Smart Door Access & Security Alarm Control Board

ABS01.web Single-Door TCP/IP Network Access Control Panel, can control one door and out the door card button or go out into all credit card.
Support TCP/IPcommunication.can be off-line running.support Interent romote operation.mobile phone access available.can be connect computer via RJ45 cable.support LAN

Info

* Control Panel ABS-01 is a single-door RS485 or TCP/IP Network Access Control Panel.
* Control of Memory up to 20,000 Users / up to 100,000 Event Buffers.
* Network Communication via RJ45.
* Time extraction record function.uploaded regulary access function. * Plice did not close the door for a long time.illegal card credit card alarm.illegal intrusion alarm.
* Real time supervision; photo display; mass storage; flexible user privilege setup; remote unlocking; multi-user supervision; quick setting;electronic map;convenient checking and query.
* In addition, Professional function for professional users such as bank,cash house, telecom station, power supply station,prison and plice station: cabinterface locking; intimidation alarm; integrated fire control;anti-passback and anti-tail.

Feature

* Closely using the latest Microsoft development platform is fully compatible with the technical.
* Admitted the mistake must be reported."an interactive user-friendly software interface, "the detailed operation log" easy to find fault and assign responsibilities.
* Multi-language format for more customers.
* Approachable.friendly.efficient and convenient interface.
* 3000 users,+12V DC.
* Support two card reads(ID/IC).
* Single door with remote exit button.
* LAN:10Mb/100Mb,Web Management.
* It can be off-line running, support TCP/IP communication.
*It can be connect computer via RJ45 cable,support LAN.
* Support Interent romote operation,mobile phone access available.

Register Method

Card reader, Password, fingerprint reader, bar-code reader (Or any combination)

Item	Description
Communication	RS485

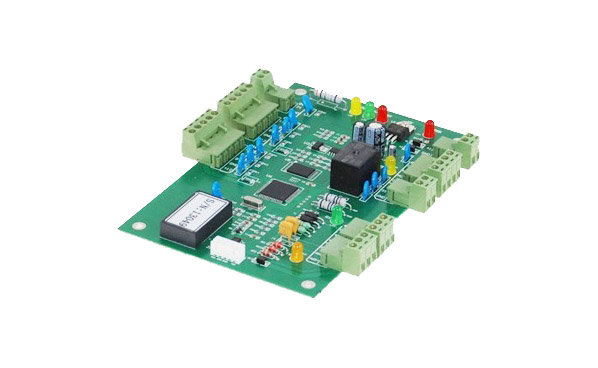

Size of PCB board	160mm *106mm

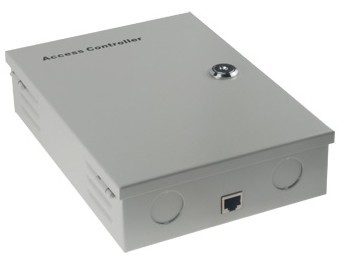

Size of Case	273mm228mm65mm
Power Supply	12VDC 4-7A
Power Consumption of Circuit Board	Less than 100mA
Input Format of Reader	Wiegand 26 (All card reader with compatible protocol, such as Motorola, HID, EM, Mifare one etc)
Quantity of Readers	1 pairs
Door Controled	1 pairs
Door opening time extending setting	1-600 seconds(adjustable)
Max q'ty of controller	N*256PCS (N:q'ty of computer serial prot or q'ty of 485 hub port, support 256pcs ports)
Operation Temperature	- 40 C~70 C
Operation Humidity	10-90 ％ RH ， No Condensation
Q ' ty of users	20,000 Users
Q ' ty of Event Buffers(offline)	100,000 event buffers
Power interruption protection measure	High Speed Memory, Records never lose
Max Distance from Reader to Controller	100m (suggestion distance 80m)
