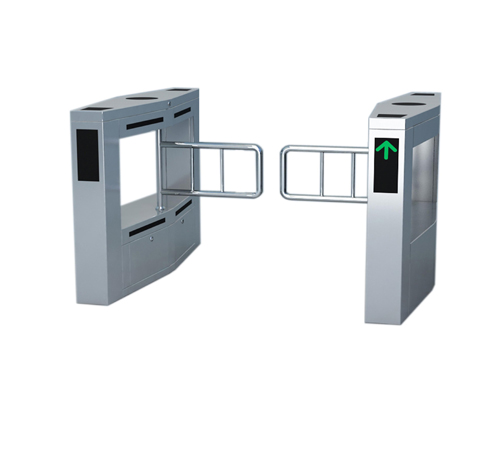

Bridge type Wing Barrier Gate

Bridge type Wing Barrier Gate with 8 function for time  tracking
Bridge type Wing Barrier Gate with 8 function for time  tracking
The reasonable and reliable design: reasonable design, low noise, stable operation, long service life
Set speed: swing arm open speed can be set up, meet the requirements of different occasions
Fault self checking / alarm function: fault self diagnosis and alarm function, maintenance and convenient for users to use
Choose a variety of work modes: can be bidirectional card reader or fingerprint limiting; can also read the card or fingerprint, another direction forbidding; read the card or fingerprint, another direction free passage
Anti impact function: in the absence of the received signal when the gate opening, swinging arm automatic lock
Automatic reset function: after opening, in the absence of traffic within the prescribed period of time, the system will automatically cancel the access permissions to users; standard is open after 5 seconds automatic reset; after the power channel automatic open and electricity automatic closing
Anti tail / waterproof sunscreen: Anti tail. To prevent a non allowed by many people; waterproof, sunscreen, cold resistant, high temperature resistant
The traditional system of unique: the traditional system is unique, gate lock at zero, unlock more accurate and reliable; can be used with other types of channel products

Application of Bridge Wing gate entrance guard machine range is so wide

It will let you so much that one cannot bear to part with it

Bridge type Wing Barrier Gate with 8 function for time  tracking
Mainly used for pedestrian passage management; it can quickly open, safe,convenient, is the ideal management of pedestrian high frequency access grooming equipment; is now widely used in airports, subway station, station, wharf, attractions,parks, walkways and other units, can be matched with a smart card ticketing management system function, and models the formation of personnel and unattended management. Compatible with credit card access control system, fingerprint recognition system,face recognition system, video intercom system, IC card management system, Basically it support All the EPORDO Access Control Products.

Schematic diagram of smart card access control attendance system structure

Bridge type Wing Barrier Gate with 8 function for time  tracking

Schematic diagram of scenic spot ticket channel system structure

Schematic diagram of ESD system channel system structure

Bridge type Wing Barrier Gate with 8 function for time  tracking

Schematic diagram of consumer access system structure

Bridge type Wing Barrier Gate with 8 function for time  tracking



Description Flap barrier
Type single flap double flap
Power consumption 50 W                         100 W
Housing Size 1400*280*950 mm
Housing material 1.5--2mm, 304# stainless steel, corosion resistant
Drive motor DC brushless motor
Channel width 500--550 mm
Pass speed 40 persons/min.
Communication Interface RS485
Input signal optional DC12V level signal or DC12V pulse signal
flap open against power off  Optional
Working temperature -30℃ to +70 ℃
Working environments indoor,outdoor
Relative humidity ≤95% coagulation free
MCBF 3,000,000 cycles
