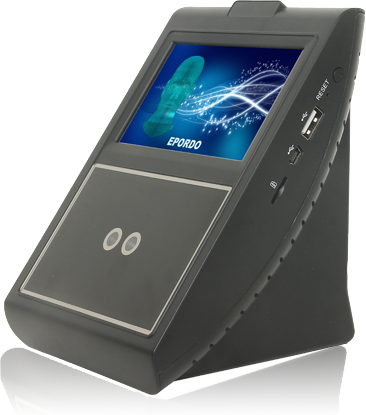

ET-F100 Face Time Attendance&Access Control

E T - F 100

Face Time Attendance And Access Control

* 4.3 Inch TFT touch color screen

* Face and password recognition

* TCP/IP, RS485, USB Communication

Strong ability to adapt to the environment

Infrared high-definition double camera, three-dimensional imaging.
Accurate recognition.Easy to deal with identification environment.

High-definition color screen

4.3 inch LCD color TFT screen display,
it does not hurt your eye.




USB Disk upload and downloads

Support U disk download EXCEL attendance report,
operation is simple, No need to connect to the computer,
Single machine work independently convenient and quick




Infrared identification technology

It uses infrared intelligent identification,
Stable performance. 300 faces capacity.
Don't recognize pictures, only recognize
true face.


Software


Configuration

Item Description
LCD TFT displayer 4.3inch HVGA high resolution touch screen
Keypad 7 key Touch type + touch screen input
Face capacity 3, 00
Storage capacity 200, 000
Verification mode 1: N, 1:1
Cammera Omni Vision higher resolution 2pcs camera uilt-in(Infrared&Normal)
Hardware Platform Atmel 400MHz
External functions Connect Electronic lock(Access Control),
Wiegand Output
Communication USB 2.0 free driver,10M/100M Ethernet
USB HOST,RS485
Access control interface Wiegand 26/34 optional, output/input optional
FAR ≤0.00001%
FRR ≤1%
Memory 512Mb
Flash Memory 1 GB
Name display Chinese or English Name, User ID, User picture
Language display Simplified Chinese, Traditional Chinese, English
Communication TCP/IP, RS485, USB
Identification mode face, password,
Temperature/Humidity 0℃~45℃ / 20%~ 80%
Optional SD card

Item Description
LCD TFT displayer:  4.3inch HVGA high resolution touch screen
Keypad 7 key Touch type + touch screen input
Face capacity 3, 00
Log Storage capacity 200, 000
Verification mode 1: N, 1:1
Response time ≤1 second
Cammera Omni Vision higher resolution 2pcs camera built-in(Infrared&Normal)
External functions Connect Electronic lock(Access Control), Wiegand Output
Communication l USB 2.0 free driver,10M/100M Ethernet USB HOST,RS485
CPU ATMEL ARM9 400MHz
Memory  512Mb
Flash Memory 1 GB
SD card Optional
FRR 1%
FAR 0.00001%
Work mode online, offline
Language display Simplified Chinese, Traditional Chinese, English
Name display Chinese or English Name, User ID, User picture
Communication TCP/IP, RS485, USB
Identification mode face, password,
Temperature/Humidity 0℃~45℃ / 20%~ 80%
Power supply DC12V/2A
Function Key sign in, sign out, go out, ESC key
Lock output often open/often close
Access control interface wiegand 26/34 optional, output/input optional
Warranty of period 12 months
Size 200*90*65mm
Applications Office/factory/bank/hotel/school etc
