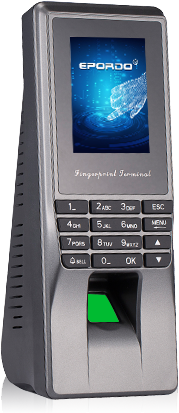

Fingerprint access control machine
* 360°Fingerprint identification
* USB Disk upload and downloads
* Voice prompt alarm function
High-definition color screen
2.8 inch LCD color TFT screen
display,it does not hurt your eye.
360°Fingerprint identification
Hd without membrance fingerprint
acquisition area, supporting dry and
wet finger, 360° accurate identification.
USB Disk upload and downloads
Support U disk download EXCEL attendance report,
operation is simple, No need to connect to the computer,
Single machine work independently convenient and quick
Alarm function
Intimidation alarm, tamper alarm,forced
door-opening alarm, door-opening overtime
alarm, entrance point alarm.
| Item | Description |
| LCD TFT displayer | 2.8inch HD color screen |
| Fingerprint capacity | 3000 |
| Card capacity | 1000 |
| Storage Capacity | 200, 000 |
| Card capacity | 1000 |
| Identification mode | Fingerprint, password |
| Recognition ways | 1：N，1：1 |
| Fingerprint Recognition Speed | 0.7s |
| FAR | ≤0.0001% |
| FRR | ≤0.01% |
| Communication | USB2.0 exempt drive, TCP/IP,BS, Card |
| OS | Linux |
| Communication | USB2.0 exempt drive,TCP/IP, BS, Card |
| OS | Linux |
| Hardware Platform | Atmel 400MHz |
| Keyboard | 4*4 keyboard |
| Size of machine | 190x80x30mm |
| Master Chip | Atmel 9G25 |
| Alarm function | Intimidation alarm, tamper alarm, forced door-opening alarm, door-opening overtime alarm, entrance point alarm |
| Lock output | NO/NC |
| Power | DC5V |
| Door open button | Both normal button and wireless remote control |
| Optional function |
1. Fingerprint capacity:5000/10000 2. WIFI 3. Wireless lock function |
| Item | Description |
| Fingerprint capacity | 3000 |
| Card capacity | 1000 |
| Storage Capacity | 200,000 |
| Log Storage capacity | 200, 000 |
| Identification mode | Fingerprint, password |
| Recognition ways | 1：N，1：1 |
| Fingerprint Recognition Speed | 0.7s |
| FAR | ≤0.0001% |
| FRR | ≤0.01% |
| Communication | USB2.0 exempt drive,TCP/IP,BS, Card |
| Memory | 512Mb |
| OS | Linux |
| SD card | Optional |
| Hardware Platform | Atmel 400MHz |
| Keyboard | 4*4 keyboard |
| Size of machine | 190x80x30mm |
| Master Chip | Atmel 9G25 |
| Alarm function |
Intimidation alarm,tamper alarm, forced door opening alarm, door opening-overtime alarm, entrance point alarm. |
| Lock output | NO/NC |
| Door open button | Both normal button and wireless remote control |
| Optional function |
1. Fingerprint capacity:5000/10000 2. WIFI 3. Wireless lock function |
