Attendance managerment system with fingerprint scanner
Inside and outside, be full of sound and colour
This product system comprises a fingerprint collector, menu display area, the main menu module, a fingerprint collector adopts the most advanced high-precision optical total reflection fingerprint head; the menu display various data display area, make you more convenient of the attendance machine operation,selection and setting information; in the main menu can be entered in the menu the operation.
The first use is so simple and easy starting
Four easy steps to complete setup
Set the time class and work time
When using for the first time to time and work
time work settings in the attendance machine
Fingerprint attendance, you can start
The registration of new hires and enter the
detailed information of the staff, can
directly start the fingerprint attendance.
U disk to download the EXCEL reports
U disk to download automatically generate
EXCEL statements
Easy and quick view Excel reports
Open the report in computer,direct viewing
results, clearing wage

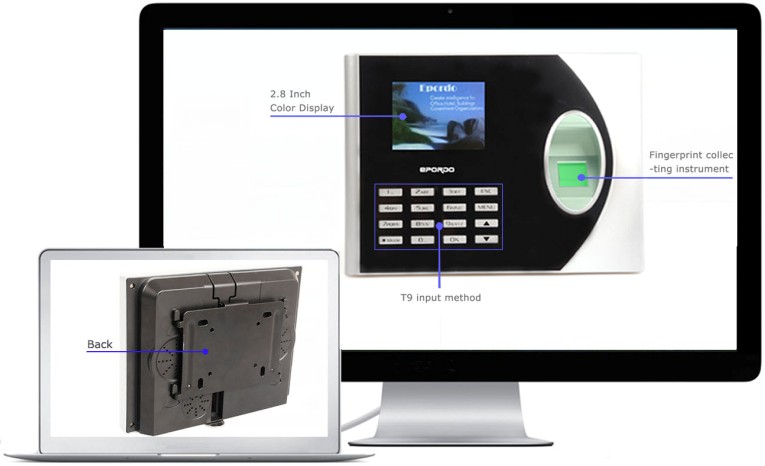

Attendance managerment system with 2.8 Inch Color Display
Fashion appearance is concise, smooth lines, break through the traditional,
rigorous structure, sophisticated technology
* Fingerprint Capacity: 600/1000;Record Capacity: 150,000/100,000
* Identification Mode: Fingerprint / Password, EM/Mifare Card Optional
* Identification Time: < 0.7s;Operating Humidity: 20% to 80%
* False Rejection Rate (FRR): < 0.1%
* False Acceptance Rate (FAR): < 0.0001%
* Fingerprint Sensor Resolution: 500DPI
* Authentication Mode: 1:1, 1:N;Bell Ring: 8 times(only FX-3)
* Communication:USB Flash Drive Upload / Download
* Menu Operation:Record Query,User Query, Department Setting,Shift Setting etc
* Operating Temperature: 0 to 50 Degree Celsius
* Power Consumption Management: Auto Sleep Time, Auto Power Off Time
* Power Source: Power Adapter,5V DC 1A (AC 100V to 240 V, 50 to 60 Hz )
* Voice and Display Language : English (Standard), Other Language Negotiable
* Software: No Need Software
* Identification Mode: Fingerprint / Password, EM/Mifare Card Optional
* Identification Time: < 0.7s;Operating Humidity: 20% to 80%
* False Rejection Rate (FRR): < 0.1%
* False Acceptance Rate (FAR): < 0.0001%
* Fingerprint Sensor Resolution: 500DPI
* Authentication Mode: 1:1, 1:N;Bell Ring: 8 times(only FX-3)
* Communication:USB Flash Drive Upload / Download
* Menu Operation:Record Query,User Query, Department Setting,Shift Setting etc
* Operating Temperature: 0 to 50 Degree Celsius
* Power Consumption Management: Auto Sleep Time, Auto Power Off Time
* Power Source: Power Adapter,5V DC 1A (AC 100V to 240 V, 50 to 60 Hz )
* Voice and Display Language : English (Standard), Other Language Negotiable
* Software: No Need Software
Stewed Assorted Delicacies attendance machine
Attendance machine products accessories complete, use more convenient
Attendance report
Easily view all kinds of report forms
Automatic generation of monthly attendance report query Excel employees, employees Moonrise attendance statistics, attendance statistics, abnormal attendance statistics as well as employees of the actual time clocked can generate the corresponding statements
You can set multiple shifts in attendance system
(Click on the figure can refer to a clearer statement)
(Click on the figure can refer to a clearer statement)
Record this month, daily work attendance details, displaying accurate time attendance table
(Click on the figure can refer to a clearer statement)
(Click on the figure can refer to a clearer statement)
Record this month, details of work every day on the staff is not normal, abnormal display in the table
(Click on the figure can refer to a clearer statement)
(Click on the figure can refer to a clearer statement)
View the employee with the attendance information
(Click on the figure can refer to a clearer statement)
(Click on the figure can refer to a clearer statement)
| Item | Description |
| Fingerprint capacity | 1, 000 |
| Record Storage | 100, 000 |
| Period of data | Keep data for 10 years when no current |
| Max Fingerprint per User | 10 |
| Verification mode | 1: N, 1:1 |
| Response time | ≤0. 7 second |
| Resolution | 500DPI |
| TFT Color Displayer | 2.8 inch |
| Connection Slot | USB |
| FRR | 0.001% |
| FAR | 0.00001% |
| KeyBoard | 16 Keys |
| Show | Time, ID number, Name |
| Working mode | Time & attendance, standalone, can work persistently |
| Save function | Color Screen Saver |
| Time & Attendance mode | Fingerprint, password |
| Temperature/Humidity | 0℃~45℃ / 20％~ 80％ |
| Power supply | DC5V, 1A (AC 100V to 240 V, 50 to 60 Hz ) |
| Option | No |
| Warranty of period | 12 months |
| Size | 190*141*32mm |
| Applications |
Office/factory/bank/hotel/school etc |
