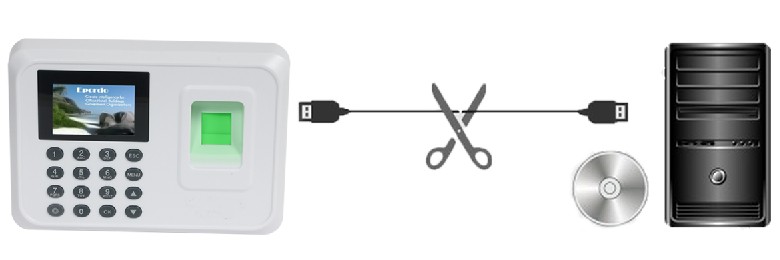

Free software installation
And complicated on-line operation say "Good-bye"

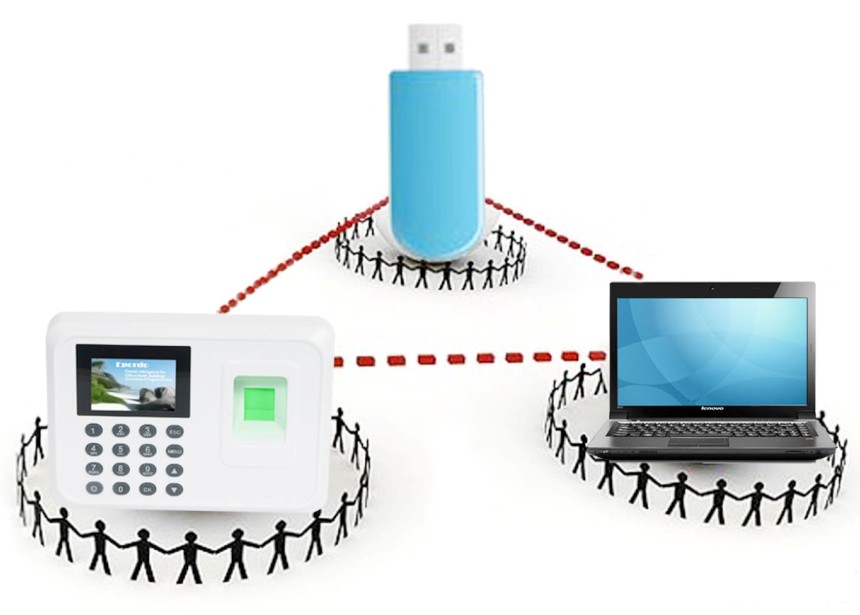

USB download attendance data
Recognition speed, it is more convenient to read the data
* Download use information include fingerprint data , password etc, then can upload to another device
* Download shift setting and shift assignment excel sheet, upload shift setting excel sheet to modify shift setting amd shift assignment.
* Download daily attendance, month/period attendance report, include late, absent, work time calculation, and punch time log report into excel file in usb flash memory
"Small" shape, "Big" role
So simple, exquisite, let you fondle admiringly

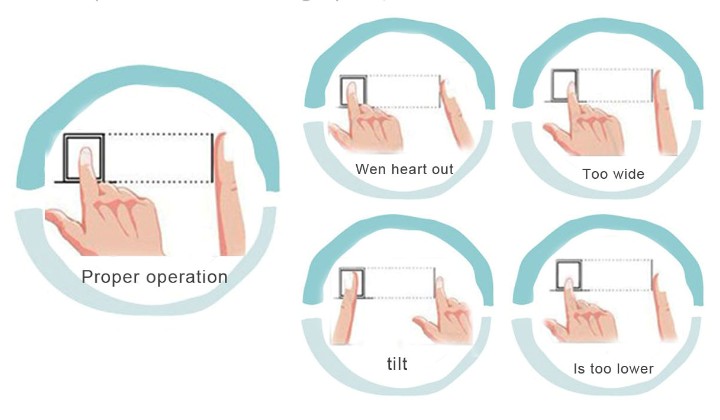

The correct attendance fingerprint more effectively
Complete leave clear fingerprint, lest affect attendance effect
Remote operations, local area network (LAN) seamless docking
Attendance member is no longer running around and efficient management
1, card clock need regular maintenance, affect the normal use of check on work attendance;
2, can't put an end to clock in, unable to perform effective attendance system fundamentally;
3, clock speed slow, after the card to clock in inspection is correct and clear, form the time when the ring out area traffic jam;
4, manual processing results of check on work attendance, statistical workload is big, because the clock is not clear or there is too much, easy to statistical errors, thus caused the dispute;
5, high maintenance costs and the need to regularly buy CARDS, ribbon, etc.;
6, not beautiful card and the card holder and occupy large area.
The fingerprint card clock:
1, the conventional card clock using habit, without software, easy to use;
2, paper card display, name, late and leave early voice prompt;
3, fingerprint attendance to eliminate instead of punching;
4, attendance statistics function without artificial statistics;
5, U disk export card statement (Excel format), can view, print, and save on the computer;
6, through U disk import name;
7, support three class section, can be manually or automatically select gear, flexible to satisfy various attendance requirements;
8, cardboard and replacement without having to buy ribbon, more economic and environmental protection;
9. No regular maintenance and durability.
Attendance report
Easily view all kinds of report forms
(Click on the figure can refer to a clearer statement)
(Click on the figure can refer to a clearer statement)
(Click on the figure can refer to a clearer statement)
(Click on the figure can refer to a clearer statement)
Item | Description |
Fingerprint capacity | 600 |
Record Storage | 150, 000 |
Period of data | Keep data for 10 years when no current |
Max Fingerprint per User | 10 |
Verification mode | 1: N, 1:1 |
Response time | ≤0. 7 second |
Resolution | 500DPI |
TFT Color Displayer | 2.4 inch |
Connection Slot | USB |
FRR | 0.001% |
FAR | 0.00001% |
KeyBoard | 16 Keys |
Show | Time, ID number, Name |
Working mode | Time & attendance, standalone, can work persistently |
Save function | Color Screen Saver |
Time & Attendance mode | Fingerprint, password |
Temperature/Humidity | 0℃~45℃ / 20%~ 80% |
Power supply | DC5V, 1A (AC 100V to 240 V, 50 to 60 Hz ) |
Option | No |
Warranty of period | 12 months |
Size | 190*141*32mm |
Applications |
Office/factory/bank/hotel/school etc |
