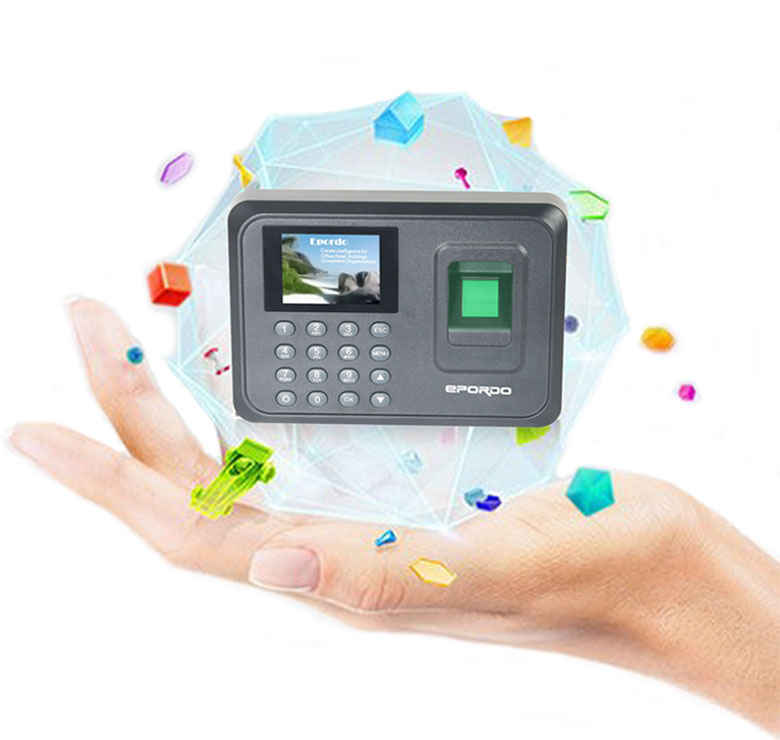

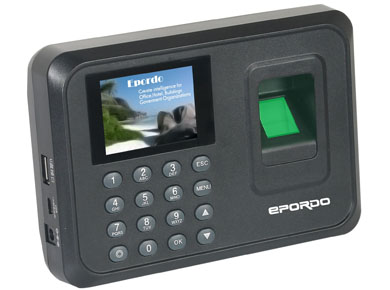

Good fast, identification of check on work attendance, easy to manage
1. Easy to use
5 minutes learn to operate
2. Attendance must
Accurate identification of dry wet and grain fingers
3. High quality
20000 hours of continuous use barrier-free
4. Simple operation management
Close using the wizard, intuitive interface, easy operation

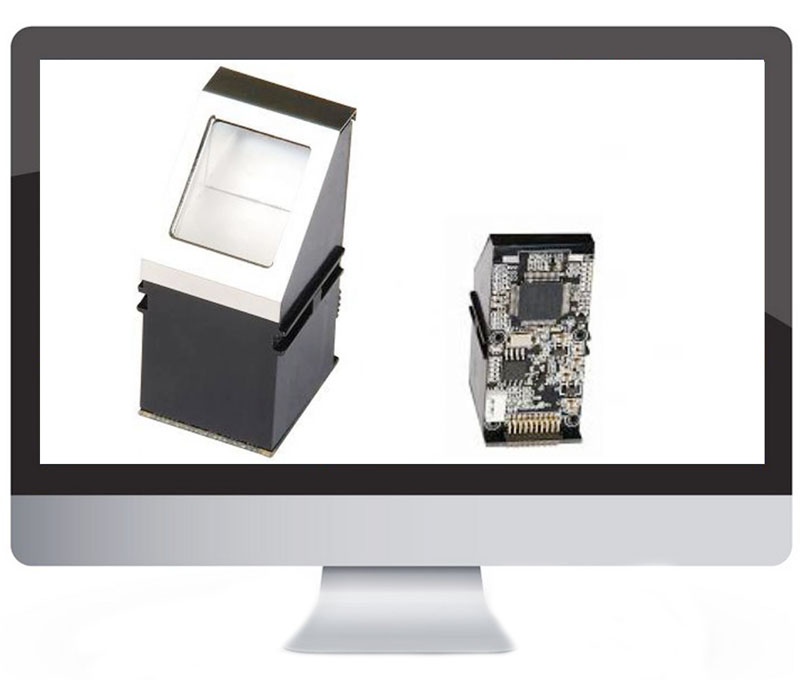

Optical fingerprint head
High precision, total reflection, durable, not easy to damage

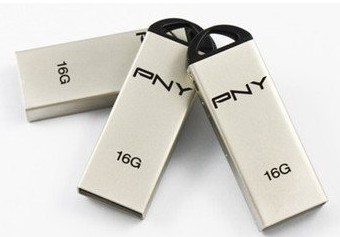

U disk uploads and downloads
Support U disk download EXCEL attendance report
* Download use information include fingerprint data , password etc, then can upload to another device
* Download shift setting and shift assignment excel sheet, upload shift setting excel sheet to modify shift setting amd shift assignment.
* Download daily attendance, month/period attendance report, include late, absent, work time calculation, and punch time log report into excel file in usb flash memory
Five simple steps to complete setup
Do not need to install the tedious software, very convenient
Step 1:use U disk copy Excel report
Even good attendance machine with power - plug
usb stick on the attendance management system -
press the [ MENU ] on the attendance management
system - [ U disk management ] - [Download data].

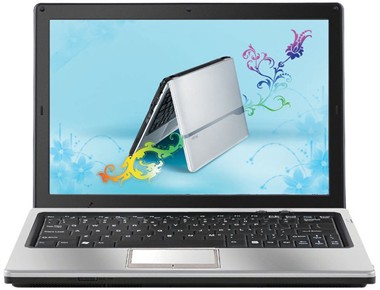

Step 2:U disk uploaded to the computer
Insert U disk to a compute - open the Excel
spreadsheet copied out- fill out the employee
name in turn,Job number,department.
Step 3:U disk to the attendance machine
Even good attendance machine with power - plug
usb stick on the attendance management system -
press the [ MENU ] on the attendance management
system - [ U disk management ] - [ Upload data ].
Step 4:fingerprint entry
Insert U disk to a compute - open the Excel Press
[MENU] key -"user management"-"registration"-
fingerprint/password registered according to prompt
Can.( Note:if you continue to admit the second
employee of fingerprints,press [ Continue to ]can
not directly to exit.
Step 5:class Settings
Press [ MENU ]key - [ attendance rules ] -
[ attendance time ] - [ set in turn shifts ]

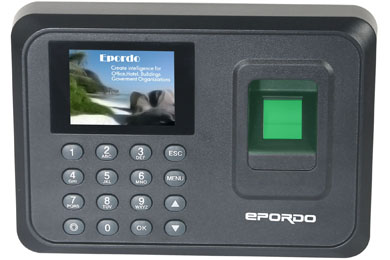

Stewed Assorted Delicacies attendance machine
Attendance machine products accessories complete, use more convenient
Attendance report
Easily view all kinds of report forms
Item | Description |
Fingerprint capacity | 600 |
Record Storage | 150, 000 |
Period of data | Keep data for 10 years when no current |
Max Fingerprint per User | 10 |
Verification mode | 1: N, 1:1 |
Response time | ≤0. 7 second |
Resolution | 500DPI |
TFT Color Displayer | 2.4 inch |
Connection Slot | USB |
FRR | 0.001% |
FAR | 0.00001% |
KeyBoard | 16 Keys |
Show | Time, ID number, Name |
Working mode | Time & attendance, standalone, can work persistently |
Save function | Color Screen Saver |
Time & Attendance mode | Fingerprint, password |
Temperature/Humidity | 0℃~45℃ / 20%~ 80% |
Power supply | DC5V, 1A (AC 100V to 240 V, 50 to 60 Hz ) |
Option | No |
Warranty of period | 12 months |
Size | 190*141*32mm |
Applications |
Office/factory/bank/hotel/school etc |
