FD Fingerprint Time Attendance with 2.8 inch TFT

No need training for using, No need software installation, No need Engneer,
Simple and Easy to use, Attendance Report download from device directly


fingerprintkeypadbiometrics reader
  • fingerprint time attendance, recorder, biometrics, reader
  • fingerprint time attendance, recorder, biometrics, reader
  • fingerprint time attendance, recorder, biometrics, reader
  • fingerprint time attendance, recorder, biometrics, reader
  • fingerprint time attendance, recorder, biometrics, reader
  • fingerprint time attendance, recorder, biometrics, reader

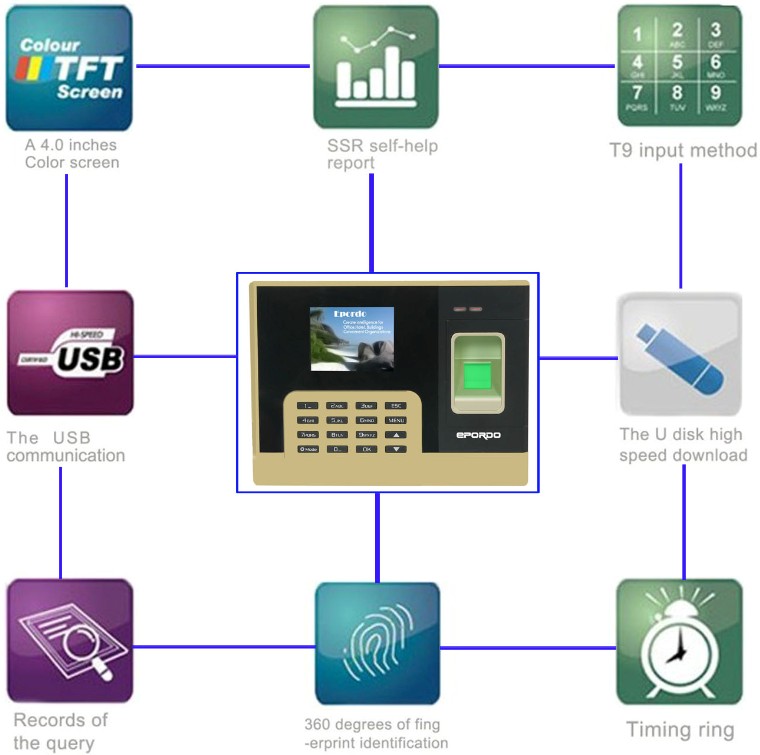

  • Feature
  • Specification
  • Drawing
  • Download
  • Product Series
  • Accessory
Keypad Input/Modify

biometrics time attendance, reader, fingerprint


* Manually Input, Modify Employee or User Name by Keypad
* Manually Input , Modify Department name by keypad
* Manually Input, Modify shift setting, start work time , end work time, late, early leave, absent setting
* Manually Input, modify shift assignment


USB flash Memory Download/Upload

fingerprint time recorder,biometrics


* Download Employee or User Information into Excel sheet file in USB flash Memory, upload excel sheet file to modify user and employee information
* Download use information include fingerprint data , password etc, then can upload to another device
* Download shift setting and shift assignment excel sheet, upload shift setting excel sheet to modify shift setting amd shift assignment.
* Download daily attendance, month/period attendance report, include late, absent, work time calculation, and punch time log report into excel file in usb flash memory


Optical Fingerprint Sensor

biometrics time attendance, reader, fingerprint


* Fingerprint Sensor with quality image, accepts dry, wet fingers.
* Support 360-degree rotation fingerprint identification, easy to use.
* Adjust image distortion, assure fingerprint matching consistency.
*Silex Glass type material, very stronger




Register/Verify User Method
Fingerprint  Password   Card(optional)

Item Description
Item Description
Fingerprint capacity 1, 000
Record Storage 100, 000
Period of data Keep data for 10 years when no current
Max Fingerprint per User 10
Verification mode 1: N, 1:1
Response time ≤0. 7 second
Resolution 500DPI
TFT Color Displayer 2.8 inch
Connection Slot USB
FRR 0.001%
FAR 0.00001%
KeyBoard  16 Keys
Show Time, ID number, Name
Working mode Time & attendance, standalone, can work persistently
Save function Color Screen Saver
Time & Attendance mode Fingerprint, password
Temperature/Humidity 0℃~45℃ / 20%~ 80%
Power supply DC5V, 1A (AC 100V to 240 V, 50 to 60 Hz )
Option No
Warranty of period 12 months
Size 190*141*32mm
Applications Office/factory/bank/hotel/school etc


Time and Attendance at Porrua Library

Mexico, 2013

With a national presence in Mexico and over80 locations in 31 states, Porrua Library is the Mexican largest library, which set out to improve its employee time and attendance system. The company sought to improve an automated process that would eliminate weaknesses inherent in the existing method and that would help achieve management goals.

Background

With a national presence in Mexico and over80 locations in 31 states, Porrua Library is the Mexican largest library, which set out to improve its employee time and attendance system. The company sought to improve an automated process that would eliminate weaknesses inherent in the existing method and that would help achieve management goals.

With nearly 800 employees on payroll, the company needed to retool its employee time and attendance system in order to:
·   Improve management of employee time;
·   Capture accurate employee time and attendance data;
·   Increase efficiency of payroll administration;
·   Reduce time and tasks store managers devoted to preprocessing payroll;
·   Prevent employees from "clocking-in" early;
·   Eliminate the act of "buddy-punching" (employees punching-in for tardy or absent co-workers);
·   Enable more efficient scheduling.



Solution

Fingerprint EP300 time and attendance from ANVIZ was implemented at Porrua library.
The system features an exclusive fingerprint identification engine, a biometric data-collection device mounted on walls at offices of each store manager. Employees enroll in the system by providing fingerprint samples, which are converted into algorithms and stored in a database for comparison. With one finger-tap on a digital sensor, the system attempts a match to authenticate employee’s identities as it logs in precise arrival and departure times.

Fingerprint EP300 from ANVIZ allows companies to set-up specific parameters such as employee schedules, pay policies, pre-populated holidays, etc., all of which can be compiled in detailed management reports.
And, the application provides seamless integration with leading payroll and accounting packages.



Benefit
Tracking time and attendance of nearly 800 employees provides superior security, accuracy, and efficiency; improved employee accountability and productivity; and reduced payroll costs.
The system fully-automated the tracking of employee hours and streamlined the payroll administration process. Its application of biometric recognition technology enabled the capacity to "know" employees and their work schedules. For example, managers could pre-program shifts, restricting employee "log-ins" to within a few


Keypad Input/Modify

biometrics time attendance, reader, fingerprint


* Manually Input, Modify Employee or User Name by Keypad
* Manually Input , Modify Department name by keypad
* Manually Input, Modify shift setting, start work time , end work time, late, early leave, absent setting
* Manually Input, modify shift assignment


USB flash Memory Download/Upload

fingerprint time recorder,biometrics


* Download Employee or User Information into Excel sheet file in USB flash Memory, upload excel sheet file to modify user and employee information
* Download use information include fingerprint data , password etc, then can upload to another device
* Download shift setting and shift assignment excel sheet, upload shift setting excel sheet to modify shift setting amd shift assignment.
* Download daily attendance, month/period attendance report, include late, absent, work time calculation, and punch time log report into excel file in usb flash memory


Optical Fingerprint Sensor

biometrics time attendance, reader, fingerprint


* Fingerprint Sensor with quality image, accepts dry, wet fingers.
* Support 360-degree rotation fingerprint identification, easy to use.
* Adjust image distortion, assure fingerprint matching consistency.
*Silex Glass type material, very stronger




Register/Verify User Method
Fingerprint  Password   Card(optional)
